APTOS MAC-800 Dual Unit | 2:1 Trunk Version Microinverter

$199.99

SKU:
1504023
Maximum Input Voltage:
60V
Maximum Output Wattage:
800W
MPPT Voltage Range:
16-60V
Communication:
2.4GHz Proprietary RF(Nordic)
Enclosure Rating:
Outdoor-NEMA (IP67)
Spec Sheet:
Manual:
Installation Guide:

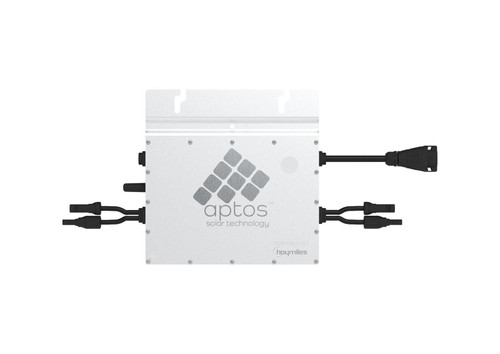

The high-performance MAC-800 dual unit microinverter is engineered for maximum AC power output when paired with Aptos Solar Technology’s high-power solar panels. The MAC-800 is built for simple system integration and is compatible with third-party devices. The MAC-800 is equipped and ready for system monitoring and trend tracking through Aptos Solar Technology’s cloud-based software.

Features:
  • Up to 800W max output
  • Compatible with 120 & 144 cell PV panels
  • IP67-rated enclosure for protection in harsh weather conditions
  • Built-in NEC compliant rapid shutdown feature
  • 6,000V surge protection
  • Ambient temperature range (°C): -40° to +65°
 Compliance:
  • UL 1741, IEEE 1547, UL 1741 SA (240Vac), CA Rule 21 (240Vac), CSA C22.2 No. 107.1-16, FCC Part 15B, FCC Part 15C






Maximum Input Voltage:
60V
Maximum Output Wattage:
800W
MPPT Voltage Range:
16-60V
Communication:
2.4GHz Proprietary RF(Nordic)
Enclosure Rating:
Outdoor-NEMA (IP67)
Spec Sheet:
Manual:
Installation Guide:
