Mobile Power Solar Kit showing Victron Phoenix Inverter, Grape Solar panels, EG4 LL Lithium Battery (V2), cables, and attachments.

Mobile Power Solar Kit - Victron Phoenix Inverter 12/1200 System | 12V | + 400W PV Solar [KIT-V0005]

$2,570.69
$2,317.13
Add to Cart
SKU:
KIT-V0005
Kit Type:
Mobile
Mobile Applications:
Compact System (Campers, Van Conversions)
Mobile Applications:
Camping, Outdoors
Description

KIT-V0005 Mobile Power Solar Kit: Reliable Off-Grid Power for Every Adventure

The KIT-V0005 Mobile Power Solar Kit is your ultimate off-grid power solution. Perfect for adventurers and those needing a reliable mobile power station, this kit includes the Victron Phoenix Inverter 12/1200, which delivers consistent 120V output with advanced features like dynamic load-dependent cut-off and overheat protection. The four 100W Grape Solar panels efficiently capture up to 400W of clean energy, even in tough conditions. The durable EG4 LL Lithium Battery (V2) | 12V 400A, with a 99% operating efficiency and 7,000 cycle life, ensures long-lasting, dependable power. Whether you're on the road or setting up a remote power source, this kit offers robust performance and reliability wherever you go.

Victron Phoenix Inverter 12/1200| VE.Direct | 1200VA Output| 12VDC Input | 120VAC Output

The Phoenix Inverter VE.Direct is a compact, efficient low-frequency inverter with a full bridge toroidal transformer, enabling it to handle large surges from inductive loads. It boasts low idle consumption—around 10W, or just 1-2W in eco mode—making it ideal for continuous 24-hour operation.

Features:

  • Versatile connectivity with desktop computers and mobile devices
  • Fully configurable settings:
    • Low battery voltage alarm trip and reset levels
    • Low battery voltage cut-off and restart levels
    • Dynamic load-dependent cut-off level
  • Output: 120V, 60 Hz
  • In-and-output voltage monitoring, load percentage, and alarm monitoring
  • Full-bridge PLUS toroidal transformer topology
  • Short-circuit protection
  • Overheat protection
  • Includes ECO Mode
  • Programmable remote power switch

Grape Solar 100W Monocrystalline Solar Panel For RV's, Boats and 12V Systems | GS-STAR-100W

Harness clean, efficient energy with the Grape Solar 100-Watt Panel, ideal for off-grid use. Compact yet powerful, it delivers reliable performance with a long-lasting design.

Features:

  • Compact size: 31.89 x 28.15 inches
  • Energy collection: Up to 400 WH in 4 hours
  • Warranty: 5-year workmanship, 25-year performance
  • Standard PV connectors: Positive and negative leads included
  • Quality control: Meets international standards
  • Durable glass: High transmittance, tempered, impact-resistant
  • Advanced encapsulation: Multilayer lamination for longevity
  • Performance: Effective in high temperatures and low light
  • Strong frame: Withstands up to 50 lbs/sq ft wind and snow load
  • Shading mitigation: Bypass diodes included

EG4 LL Lithium Battery (V2) | 12V 400AH | Server Rack Battery

Composed of (16) UL listed prismatic 3.2V cells which have been tested at 7,000 deep discharge cycles to 80% DoD - fully charge and discharge this battery daily for over 15 years without issue. Reliable and rigorously tested, with a 99% operating efficiency.

Features:

  • 7,000 deep charge/discharge cycles
  • 15-year life at 80% depth of discharge, up to 20 years
  • High energy density server rack battery form factor
  • Selectable closed-loop inverter communications (Victron, EG4)
  • Parallel up to 16 batteries, up to 80 kWh
  • Built-in EG4 Smart BMS for voltage, current, temp, and health management
  • Easy battery bank expansion
  • On-board LCD screen
  • Lifetime firmware updates

  • 10-year warranty, supported and serviced in Texas

Product Image Product Information
Front view of Victron Phoenix Inverter 12/1200 with 1200VA Output and 12VDC Input

1 x Victron Phoenix Inverter 12/1200| VE.Direct | 1200VA Output| 12VDC Input | 120VAC Output
Front view of EG4 LL Lithium Battery, angled down slightly, showing communication inputs and terminals

1 X EG4 LL Lithium Battery (V2) | 12V 400AH | Server Rack Battery
Front view of Grape Solar 100W Monocrystalline Solar Panel

4 X Grape Solar 100W Monocrystalline Solar Panel For RV's, Boats and 12V Systems | GS-STAR-100W

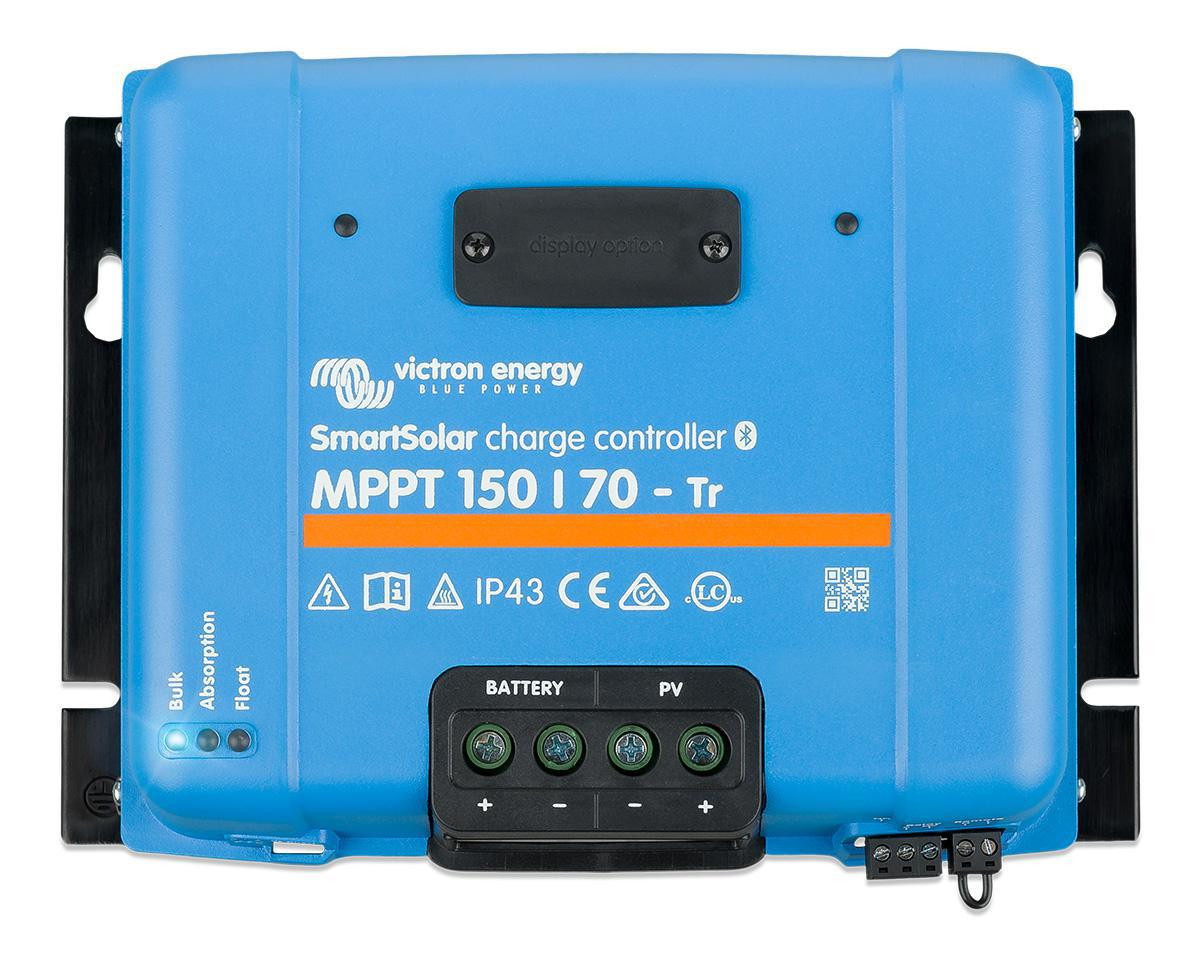

Victron SmartSolar MPPT 150/70-Tr front view

1 X Victron SmartSolar MPPT 150/70-Tr
IMO DC Disconnect Rooftop Isolator Switch showing the front view with the rotary actuator switch and plastic enclosure

1 X IMO DC Disconnect Rooftop Isolator Switch | 4 Pole | 2 String
600A 12 Stud Busbars shown from top and bottom view

1 X 600A 12 Stud Busbars | Red & Black Kit

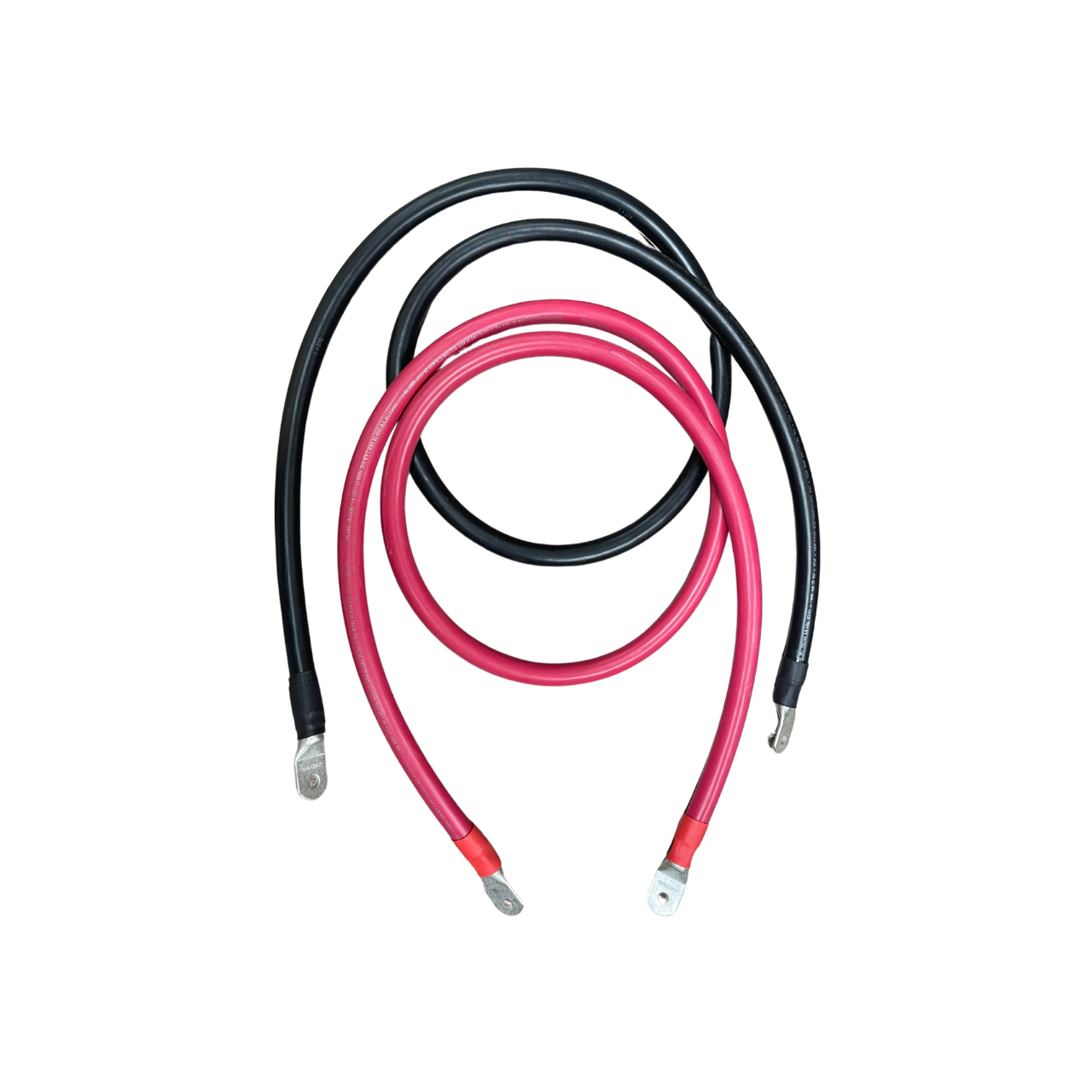

72in 2 AWG Battery to Inverter Cables, shown in Black and Red cables overlayed

1 X 72in 2 AWG Battery to Inverter Cables | Black and Red
Additional Information
Kit Type:
Mobile
Mobile Applications:
Compact System (Campers, Van Conversions)
Mobile Applications:
Camping, Outdoors
