Victron Quattro 48/15000 | Signature Solar

Victron Quattro 48/15000 | 48V Input | 15000VA Output 230V | 200A Charger | Transfer Switch

$5,302.00
$3,424.65
(You save $1,877.35 )


SKU:
1593079
Weight:
72kg / 159lbs.
Rated Power:
15000VA
Voltage:
48V
Max Charging Current:
200A
Rated AC Output:
240VAC
Spec Sheet:
Manual:

Victron Quattro 48/15000 | 48V Input | 15000VA Output 230V | 200A Charger | Transfer Switch

The Quattro by Victron, much like the MultiPlus, combines the technologies of an inverter and charger. Additionally, it can accept two AC inputs and automatically connect to the active source. It shares many traits with the Multiplus, such as acting as a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.

Key Features:

  • Two AC Inputs & Outputs
    • Automatically connects to the active source.
  • Unique PowerAssist - Prevents overload of a limited AC source.
    • First, battery charging automatically reduces.
    • Second, shore side supply will be boosted with power taken from the battery.
  • Parallel up to 6 units
    • Split Phase or Three-Phase capable.
  • Remote Monitoring and Control
    • Access can be from a phone, tablet, laptop, or PC for multiple operating systems.
Weight:
72kg / 159lbs.
Rated Power:
15000VA
Voltage:
48V
Max Charging Current:
200A
Rated AC Output:
240VAC
Spec Sheet:
Manual:
5-Year Warranty
Customer Reviews
5.0 Based on 3 Reviews
5 ★
100%
3
4 ★
0%
0
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
Customer Photos
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
  • Clay
  • everything
  • batteries
  • Autotransformer
  • PICOGLF60W48V240VS
  • AC inputs
  • Tesla
  • 6000
  • EG4 LL 48V
  • value inverter
J
08/11/2024
Jarrett
United States

What can’t this inverter do!

Ok so my use case is a bit unique. I’m building a food truck that has an AC input from a Tesla wall charger at 240V at 50 amps and I’m wiring in a 240V 50 amp generator plug receptacle. The van needs an inverter that can push 240V to the circuit breaker panel. My original solution used an AIMS 6000 Watt Pure Sine Inverter Charger 48Vdc/240Vac Input & 120/240Vac, PICOGLF60W48V240VS. Great value inverter but I would need to wire in a transfer switch between the 2 AC inputs. To further complicate things the Tesla wall charger doesn’t have a neutral which means I would have had to use the EG4 chargeverter to charge the EG4 LL 48V batteries. After talking to Clay and him recommending me speak to Victron they confirmed this one inverter paired with the correct Autotransformer would be able to do everything. Super excited about how much cleaner this build will be.

SH
07/23/2024
S. HALL
United States

Victron + EG4-LL

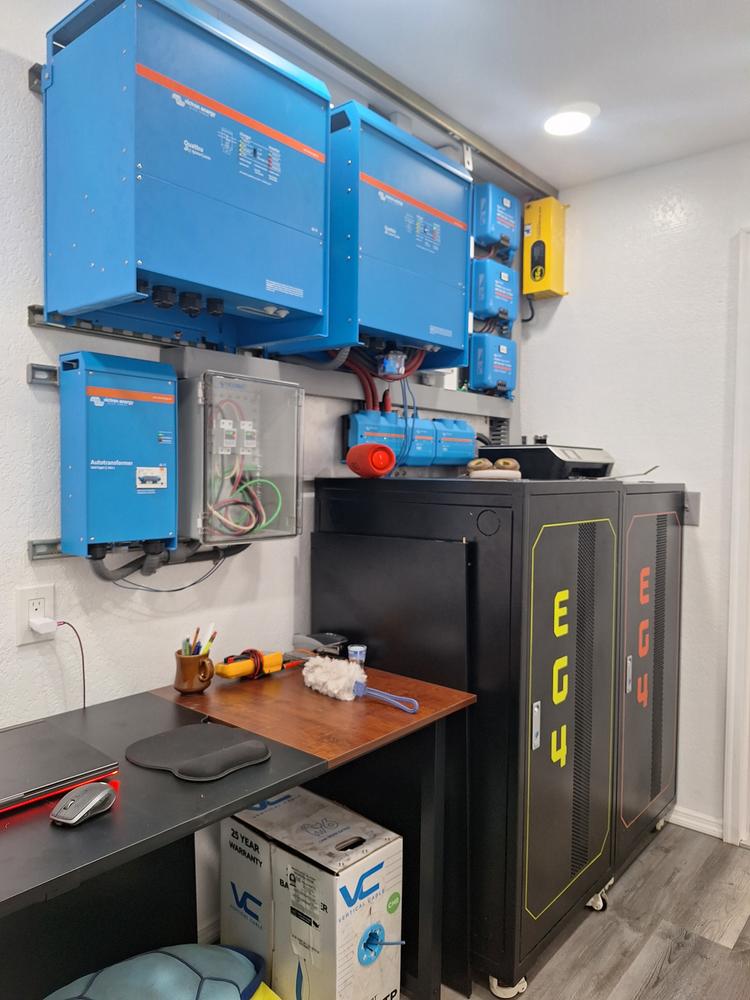

Most of our solar offgrid components were purchased through Signature solar, been in operation for over year and all good

Signature Solar Victron Quattro 48/15000 | 48V Input | 15000VA Output 230V | 200A Charger | Transfer Switch Review
S
03/19/2023
S.Hall

Victron Quattro 48/15000va

Fast shipping and secured well in shipping crate

Signature Solar Victron Quattro 48/15000 | 48V Input | 15000VA Output 230V | 200A Charger | Transfer Switch Review
