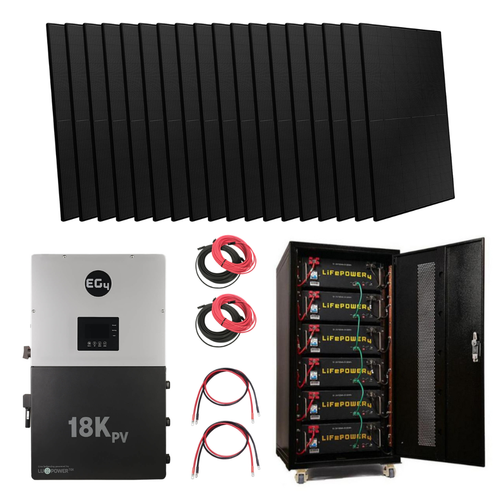

Complete Hybrid Solar Kit - 12,000W 120/240V Output + 30.72kWh EG4 Lithium Powerwall + 16560 Watts of Solar PV [KIT-E0005]

$21,434.34
$19,874.34

SKU:
KIT-E0005-6X-36
Spec Sheet (EG4 18KPV Hybrid Inverter):
Spec Sheet (EG4-LL-S):
Spec Sheet (EG4-LiFePOWER4):

KIT-E0005: Attain energy independence with powerful renewable solutions!

Embark on a transformative experience with our Complete Hybrid Solar Kit - KIT-E0005! Immerse yourself in the power of 14,000 watts of solar energy, coupled with a 12,000W output Hybrid Inverter and a 30.72kWh EG4 Lithium Powerwall. This all-in-one solution immerses you in energy independence. With a sleek design, Texas-based support, and effortless solar harnessing, transform your space into a hub of clean energy. Don't miss out—order the KIT-E0005 now and be part of the solar revolution!

*Our kits include just about everything you will need. However, you need your own installation tools and grounding rods/wire as well as optional components like surge limiters, and breaker panel/s. We also strongly recommend getting a certified solar installer and/or master electrician for professional installation.

The eg4 18kPV Hybrid Inverter Solution

EG4 18kPV-12LV Features:

Performance Components

  • 18,000W PV input, 12,000W continuous output
  • Stackable - Parallel multiple units together
  • Closed loop communication with EG4 batteries
  • Overload, short circuit & over temperature protection
  • Line Balancing

All-In-One

  • Everything needed to get started
  • Simple plug-and-play install and inverter management
  • Manages power from energy storage systems, and grid simultaneously
  • 120/240V split phase
  • Fully outdoor rated (Avoid direct sunlight)

Comprehensive Certifications

  • Safety - UL1741SB Rule 21, RSD NEC 2020:690.12, AFCI NEC 2020:690.11 / UL1699B, GFDI NEC 2020:690.41(B), CSA 22.2.107.1, CSA 22.2.330
  • Grid connection - IEEE 1547.1:2020;IEEE 1547:2018, Hawaii Rule 14H, California Rule 21 Phase I, II, III
  • EMC - FCC Part 15 Class B
  • Outdoor Rating - NEMA 4X / IP65
  • CEC Solar Equipment Listing

Fully Remote monitoring & firmware upgrades

  • Remotely Monitor & View Your System
  • View solar yield, battery charging/discharging rate & import consumption
  • Displays live energy data, battery charge and discharge limitations, and battery warning or fault.
  • View the power curve from each day
  • Displays key parameters over a 24-hour period
  • Get historical data about your system for analysis and maintenance
  • Update firmware remotely anywhere at anytime
EG4 18kPV - 12LV all in one hybrid solar inverter
Product Image Product Information

1 X EG4 18KPV Hybrid Inverter | All-In-One Solar Inverter | 18000W PV Input | 12000W Output

Introducing the EG4 18kPV All-In-One Hybrid Inverter - the ultimate power solution for any solar project! This innovative hybrid inverter combines the functionality of a grid-tied and off-grid system together while eliminating the need for charge controllers or transformers to create a convenient, independent, all-purpose powerhouse. It also boasts an extensive list of certifications and compliances, helping it meet typical electrical regulations.

1 X EG4 18KPV Hybrid Inverter | All-In-One Solar Inverter | 18000W PV Input | 12000W Output

Introducing the EG4 18kPV All-In-One Hybrid Inverter - the ultimate power solution for any solar project! This innovative hybrid inverter combines the functionality of a grid-tied and off-grid system together while eliminating the need for charge controllers or transformers to create a convenient, independent, all-purpose powerhouse. It also boasts an extensive list of certifications and compliances, helping it meet typical electrical regulations.

2 x 96in 2/0 AWG Battery to Inverter Cables | Black and Red

Signature Solar offers 2/0 AWG battery cables designed to outlast and outperform any other cables on the market. These are American Made and Manufactured. 2/0 AWG Battery Cable UL MTW/THW/SGT Flexible with ends, 3/8 inch ring terminal end.

4 X 50ft 10 AWG Copper PV Wire | Black and Red

Plug and play with 50ft of PV Wiring! These are complete with Male/Female MC4 connections. Outdoor rated and weatherproof to suit any Solar Array Design. The wires are meant for connecting and extending Solar Panels and Array Strings as well as bringing Strings to your Inverter. Plug as many as you'd like together to create the exact size you need for your project.

1 x PV 2 Wire Management Clip | 50 Pack

Small clips for securing PV cables to panels. Better than tie wraps.

Panel Options Product Information

36 x Boviet 450W Bifacial Solar Panel (Silver) | - 16,200W

DESIGNED TO PERFORM AND BUILT TO LAST

PERC, half-cut, multi-busbar, and large cell designs enables:

  • The PV modules to pack more power per module
  • Produce more energy
  • Provide reliable,dependable system performance under different installations requirements, difficult weather, or environmental conditions.

30 x Canadian Solar 390W Solar Panel (Black) - 11,700W

Canadian Solar 390W Mono-crystalline Solar Panel (Black). Low power loss in cell connection compared to conventional modules. Improved shading tolerance. Lower internal current, lower hot spot temperature. Heat-strengthened glass minimizes micro-crack impact. Full 25-year workmanship & linear power performance warranty compared to 12/25 from other panels.



*Currently unavailable

Battery Options Product Information

6 x EG4-LifePower4 Lithium Battery | 48V 100AH | Server Rack Battery & 1 x EG4 LiFePOWER4 Communications Hub

EG4 Lithium Iron Phosphate battery 51.2V (48V) 5.12kWh with 100AH internal BMS. Composed of (16) UL listed prismatic 3.2V cells in series which have been tested at 7,000 deep discharge cycles to 80% DoD - fully charge and discharge this battery daily for over 15 years without issue. Reliable and rigorously tested, with a 99% operating efficiency.

The EG4 LiFePOWER4 Communications Hub streamlines and maximizes your solar power system by interpreting and translating multiple 48V battery management system (BMS) protocols. It serves as a liaison between your 48V battery and inverter, communicating with a diverse range of BMS protocols, and offers real-time monitoring. This eliminates the requirement to check each battery individually, guaranteeing the optimal performance of your solar system.

6 x EG4-LL-S Lithium Battery | 48V 100AH

EG4-LL lithium batteries offer second to none performance and longevity. Get peace of mind knowing our batteries are designed to last for more than 7000 deep charge and discharge cycles and have a life cycle of more than 15 years with an 80% depth of discharge daily.

Looking for more details? Frequently Asked Questions...

Does this kit come with a warranty?

Yes! You're covered by all of the manufacturer warranties on each product and our free, customer & tech support based in Texas!

Can I expand this system in the future?

This system is completely expandable. Add more EG4 Inverters, EG4 Batteries, and solar panels as expansion is needed. You may find you need more power depending on where in the country you are.

What solar panels are provided with this kit?

What sort of solar panel racking is included?

Most of our customers build their own ground mount system. However, roof mounting components are available on our store if you would perfer a roof mounted solution.

How can I monitor the status of my EG4 LifePower4 Lithium Batteries?

You can monitor the battery's status through the integrated Battery Management System (BMS), which provides real-time information on voltage, current, temperature, and health.

How long will it take for me to get my kit?

If you're in the main 48 states we do our best to get you your order within 5-15 business days as long as no items are in backorder status. Recently with the mainstream demand for our products, our delivery times to customer's door are averaging around 9-16 business days. You will receive your tracking numbers as soon as they are available. Items in your kit may ship seperately.
