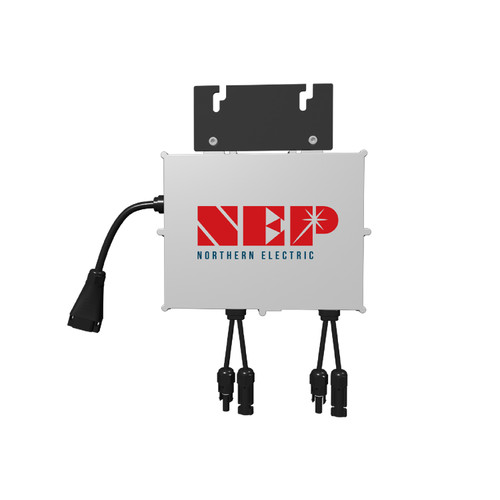

Maximize Your Energy Output with the BDM-800

The BDM-800 microinverter is engineered for high performance and affordability, boasting an impressive efficiency of 95%. With integrated monitoring capabilities and power line communication via the BDG-256 gateway, this microinverter is compatible with the BDM-300, BDM-250, and BDM-300×2 systems.

Key Features:

Streamlined Design

• Dimensions: 8.8” x 8.2” x 1.38”
• Weight: 6.4 lbs (including AC cable)
• Operating Temperature: -40°F to +185°F
• Cooling System: Natural convection for reliable performance

Effortless Installation

• Integrated grounding simplifies setup
• Built-in monitoring and communication with the BDG-256 gateway
• Easily connects with BDM-300, BDM-250, and BDM-300X2

Global Certifications

• • Certifications: Rule 21, UL 1741, CSA C22.2 No 107.1
  • Enclosure Rating: NEMA-6/IP-66/IP-67
  • Efficiency: High performance with a CEC rating of 95.5%

About NEP Microinverters

At NEP, innovation drives our commitment to environmental sustainability. With a decade of experience, we are dedicated to revolutionizing energy solutions and contributing to a greener future.

Discover the power of the BDM-800 and elevate your energy production today!
