The Secret Agent of System Grounding

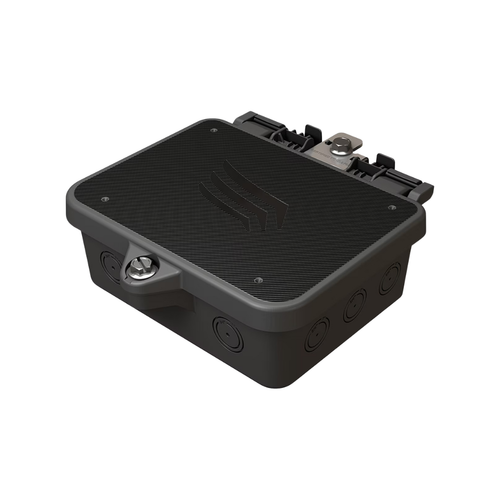

The Pegasus BondBox takes solar grounding to the next level with an integrated ground lug, full-metal mounting bracket, and pre-installed quality control form. Designed for use with Pegasus SkipRail systems, BondBox provides a fast, reliable way to electrically bond rails, eliminate extra ground lugs, and streamline array installations.
Key Benefits:
- Integrated Ground Lug: Bonds rail to ground wire for up to three connections.
- Full Metal Bracket: Thick aluminum bracket ensures a secure, long-lasting attachment.
- Lay-In Ground Bar: Includes openings for grounding multiple arrays with mid-wire connections.
- No-Slip Feet: Improves roof traction and allows stackable transport.
- Quality Control: Pre-installed form for site capture and installation reference.
Use Cases:
Ideal for residential or commercial solar installations using Pegasus SkipRail systems, where fast, code-compliant grounding and clean, organized wiring are required.
Tech Specs
- Grounding: Integrated ground lug for up to 3 wires
- Ground Wire Size: 6 AWG - 10 AWG
- Enclosure Rating: NEMA 3R
- Maximum Voltage: 999 VDC / 240 VAC
- Maximum Current: 99 Amps
- Certifications: UL2703 | UL1741
- Compatible Rail: All Pegasus Rails
