Clean Edges. Hidden Strength. Professional Finish.

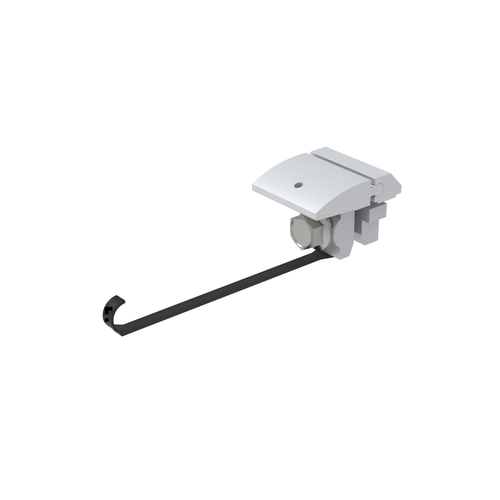

The Top Rack Hidden End Clamp delivers a clean, professional edge finish while securely fastening the outermost solar module to the rail system. Designed to slide discreetly into the rail channel, this clamp installs beneath the panel frame, eliminating visible hardware for a streamlined array appearance. Once positioned, the clamp applies consistent pressure against the module frame, ensuring long-term holding strength and compliance with installation standards. Ideal for installers who prioritize aesthetics without compromising structural integrity, the Hidden End Clamp combines concealed fastening with fast, straightforward installation.
Key Benefits:
- Clean, concealed appearance: Hidden beneath the module frame for a polished array edge
- Secure module fastening: Applies firm pressure against the panel frame when torqued to spec
- Installer-friendly design: Slides easily into the rail channel for quick positioning
- Professional finish: Pairs seamlessly with end caps to complete the rail system
Use Cases:
Residential solar installers and contractors specializing in composition shingle roofs who need fast, secure, watertight rail mounting without traditional flashing.
Tech Specs:
- Material: Aluminum 6005-T5
- Finish: Mill
- Application: Comp Shingle Roof, Tile Roof
