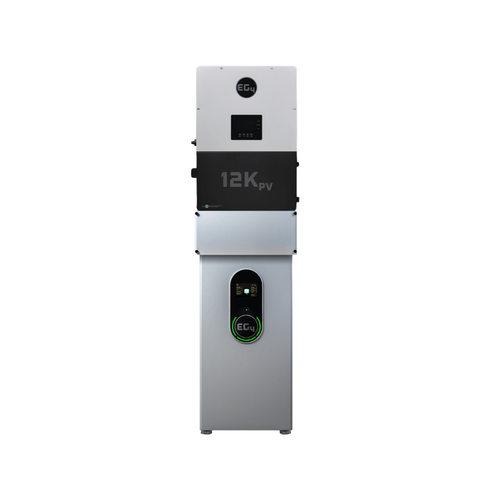

EG4 12kPV Hybrid Inverter | 48V | 12000W Input | 8000W Output | 120/240V Split Phase + EG4-WallMount Indoor Battery 280AH | 51.2V | 14.3kWh [BNDL-E0012]
Sale

EG4 12kPV Hybrid Inverter | 48V | 12000W Input | 8000W Output | 120/240V Split Phase + EG4-WallMount Indoor Battery 280AH | 51.2V | 14.3kWh [BNDL-E0012]

$7,460.00
$6,798.00
SKU:
BNDL-E0012
Quick Start Guide:
Inverter Spec Sheet:
Battery Spec Sheet:
Battery Quick Start Guide:
Kit Type:
Residential
Hybrid Applications:
Standard Home System (3-4 Bedrooms)
Hybrid Applications:
Small Home System (1-2 Bedrooms)

EG4 12kPV Hybrid Inverter | 48V | 12000W Input | 8000W Output | 120/240V Split Phase | RSD | All-In-One Hybrid Solar InverterEG4

EG4 12kPV Hybrid Inverter

The EG4 12kPV is a 48V, split-phase hybrid inverter designed for both rural and suburban homeowners seeking energy independence. It is similar to the EG4 18kPV in its ability to power loads while charging batteries and also shares the same certifications, architecture, and firmware.

However, the 12kPV is more compact, making installation simpler, and provides significant cost savings. It plays a central role in the EG4 energy storage system, incorporating MPPTs, a two-way DC-AC inverter, grid interaction, and battery connectivity. This integration of grid-tie and off-grid functionalities removes the need for additional charge controllers or transformers, offering a convenient and comprehensive energy solution.

The 12kPV supports 12kW of PV input and 8kW of continuous output, even during battery charging, positioning it as an effective option for those looking to implement a lightweight ESS. Additionally, its modular design allows for expansion, adapting to both today and tomorrow’s energy needs. Users can monitor system performance and perform updates remotely via the EG4 Web Monitoring Website/App, ensuring control and flexibility.

Elevate energy independence with the 12kPV. This compact, cost-effective powerhouse integrates seamlessly into energy storage systems, offering an all-in-one solution. With swift installation, remote monitoring, and future-ready features, the 12kPV ensures reliable, efficient, and scalable energy solutions.

Enter the solar landscape confidently, backed by EG4’s US-based support and a constant commitment to powering the way into the future.

EG4 48V Indoor 280Ah WallMount Battery

The WallMount Indoor 280Ah batteries are ideal for low-voltage residential indoor energy storage applications. The batteries use lithium iron phosphate cells with the highest safety performance and an intelligent Battery Management System (BMS) that can monitor and record the voltage of each cell along with the current, voltage, and temperature of the module in real-time. The BMS also contains a passive balance function and an advanced battery control method, both of which improve the performance of the battery pack.

ON-BOARD LCD TOUCH SCREEN
Easy to see BMS monitoring, and selectable closed-loop communications with EG4, Schneider, Sol-Ark, Victron, Growatt, Megarevo, Luxpower, and Deye inverters.

DUAL ON-BOARD FIRE ARRESTORS
Offer fail-safe protection against thermal runaway.

INTEGRATED SELF-HEATING FEATURE
Internal heating keeps cells operating during cold temperatures.

INTEGRATED BUSBARS
The battery design comes manufactured with 600A internal busbars with multiple terminals (4 positive & 4 negative) eliminating the need for external busbars when paralleling batteries and/or multiple inverters.

INNOVATIVE EMERGENCY STOP FUNCTION
The optional ESS disconnect can shut down all batteries and inverters (if equipped with rapid shut down capability) with the press of a button.

THE PERFECT PARTNER TO EG4 INVERTERS
The optional conduit box mates up directly to the connection ports of EG4 inverters allowing a sleek and efficient installation. For other inverters or stand-alone battery installation, the conduit box plugs should be installed.

Bundle Includes:

EG4-WallMount Indoor Battery 280AH | 51.2V | 14.3kWh

EG4 12kPV Hybrid Inverter | 48V | 12000W Input | 8000W Output | 120/240V Split Phase | RSD | All-In-One Hybrid Solar Inverter

EG4 PowerPro Battery Paralleling Cables On BNDL-E0012-2 (1), BNDL-E0012-3 (2), BNDL-E0012-4 (2), BNDL-E0012-5 (4)

Quick Start Guide:
Inverter Spec Sheet:
Battery Spec Sheet:
Battery Quick Start Guide:
Kit Type:
Residential
Hybrid Applications:
Standard Home System (3-4 Bedrooms)
Hybrid Applications:
Small Home System (1-2 Bedrooms)
