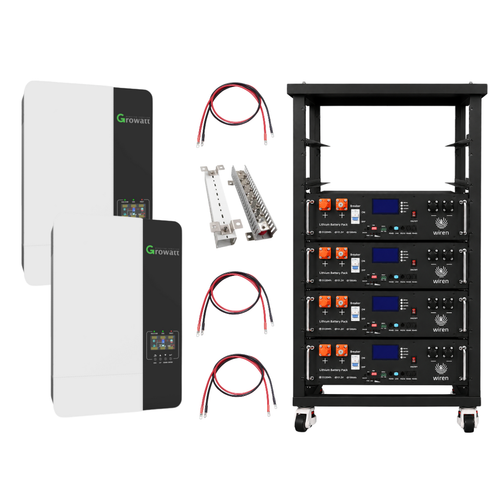

Growatt 6kW Split-Phase Off-Grid Solar Power System | 30.72kWh Wiren U5 Battery Bank {BNDL-GR005}

Key Benefits:

• • 120/240V Split-Phase Power: Two Growatt SPF 3000TL LVM-ES inverters work together to provide 6kW of continuous split-phase power, making this system ideal for running household appliances, well pumps, workshops, and other demanding off-grid loads.

  • Compact, Space-Saving Design: The rack-mounted U5 batteries provide substantial storage capacity in a compact footprint, making them ideal for utility rooms, garages, equipment rooms, and dedicated power spaces where maximizing usable space matters.

  • 20.48kWh of Long-Lasting Storage: Six Wiren U5 batteries provide over 20kWh of LiFePO4 energy storage, giving you dependable overnight power, reserve capacity for cloudy days, and peace of mind during outages.

  • Built to Grow with You: The Growatt platform supports parallel expansion up to six inverters while the U5 batteries can scale to 63 units in parallel providing you with the ability to evolve this system as your energy requirements change.

  • Designed for Long-Term Performance: Wiren U5 batteries offer up to 6,000 life cycles and integrated battery management systems that protect against overcharging, over-discharging, short circuits, and temperature extremes.

Use Cases:

Ideal for off-grid homes, homesteads, cabins, workshops, barns, and remote properties that need dependable power every day.

Tech Specs:

Growatt SPF 3000TL LVM-ES

• • Rated Power Output: 3kW Per Inverter

  • AC Voltage Output: 120V single phase per Inverter(Can be paralleled to make 120V/240V split phase)

  • Weather Protection: IP20

  • Storage Temperature: 5°F - 140°F

Wiren U5 Rack Battery

• • Nominal Voltage: 51.2V

  • Energy: 5.12kWh

  • Certifications: UL 1973 | UL 9540A | CE | UN38.3

  • Parallel Support: Up to 63 units

Please Note: Lifetime Customer Support is based in Texas and available via phone and email. We strongly recommend using a certified solar installer and/or master electrician for professional installation. Please note that additional components may be required for your installation.

Have questions or need assistance? Our support team is here to help! Give us a call at 903-441-2090.
