Tamarack Solar | Ground Mount | Kit C-3IN | 4 Module | 0 Posts | 3-IN Pipe | 91603-A

Brand :

$400.00

SKU:
1688031

Expand Your Ground Mount Array Without Buying Extra Posts

The Tamarack Solar GM Kit C is designed to extend an existing Tamarack Ground Mount system by adding another four-module column without additional vertical posts. This version is specifically designed for use with 3-inch pipe. Using heavy-duty 3.1-inch aluminum rails and Tamarack's proven mounting hardware, Kit C allows you to expand your array while reusing the structural posts already in place, helping reduce both material costs and installation time. Designed for landscape-mounted solar modules with frame thicknesses between 30mm and 40mm, the kit features built-in wire management, UL 2703 listed components, and a durable aluminum rail system engineered for demanding environmental conditions.

Solar panel installation with text highlighting its features and benefits.

Key Benefits:

    • Heavy-Duty Aluminum Rail System: Includes four 93-inch mill-finish aluminum rails with splice hardware that create two continuous 186-inch rails for long-lasting structural support.

    • Faster, Cleaner Installations: Integrated wire management allows PV wiring and module-level electronics cabling to route inside the rails for a cleaner appearance and reduced installation time.

    • Built for Harsh Weather: Engineered for installations rated up to 170 MPH wind speeds and 140 PSF snow loads when installed according to Tamarack engineering requirements.

    • Certified and Code Compliant: UL 2703 Listed mounting system with Class A fire rating compatibility for Type 1 and Type 2 PV modules. PE-certified engineering documentation is available for all 50 states and Washington, D.C.

Use Cases:

Ideal for expanding an existing Tamarack Solar ground mount installation by adding another four-module landscape section while utilizing the existing structural posts. Perfect for residential, agricultural, rural, commercial, and off-grid solar installations where future system growth is planned.

Tech Specs:

    • Modules Supported: 4 Modules (Landscape Orientation)

    • Rail Material: 3.1-inch Mill-Finish Aluminum

    • Maximum Module Width: 45 inches

    • Certification: UL 2703 Listed

Please Note: Lifetime Customer Support is based in Texas and available via phone and email. We strongly recommend using a certified solar installer and/or master electrician for professional installation. Please note that additional components may be required for your installation.

Have questions or need assistance? Our support team is here to help! Give us a call at 903-441-2090.


Product Image Product Information

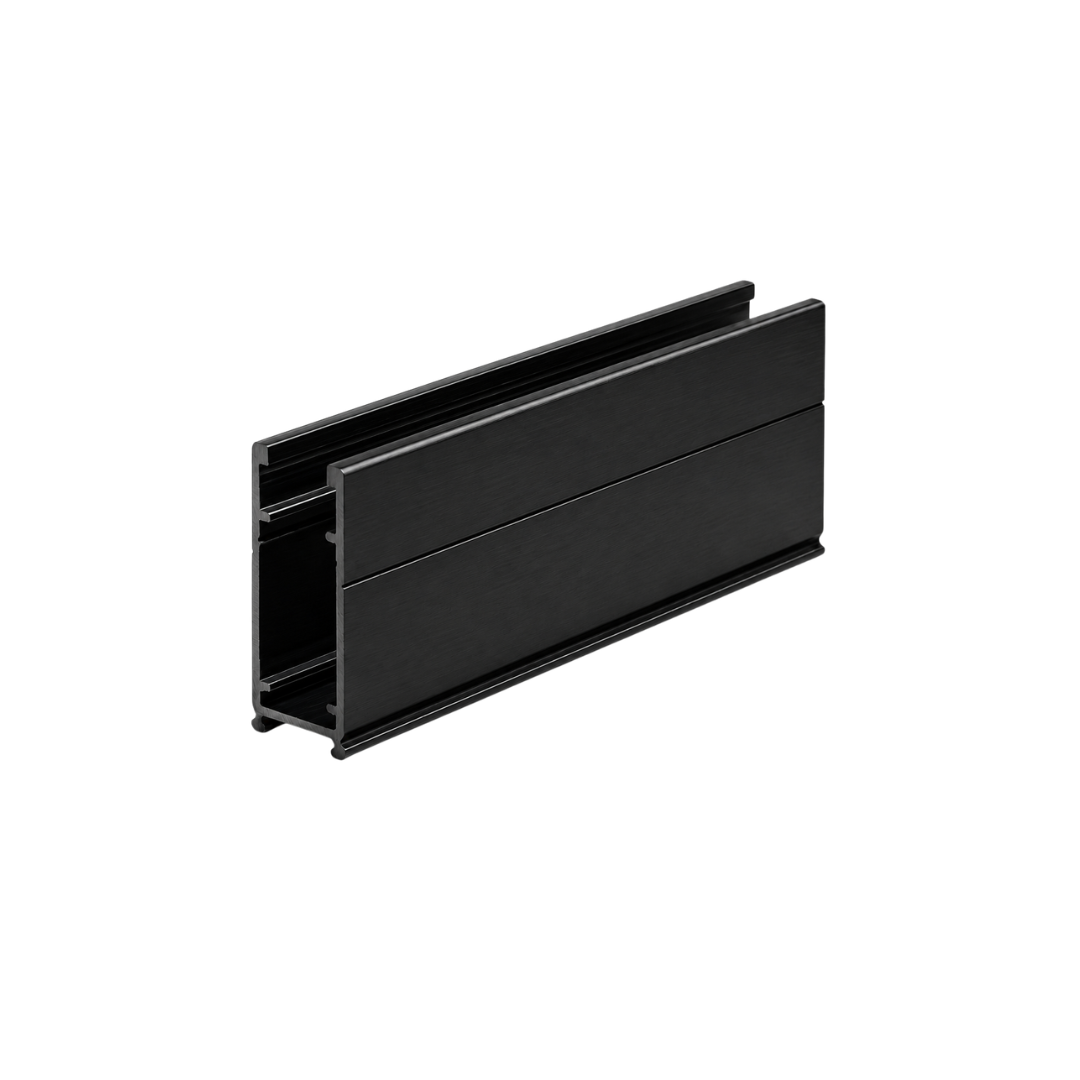

Black rectangular metal channel with open sides and flat surfaces.

4x Tamarack | 3.1 in. Mill Finish Rail | 93 in.

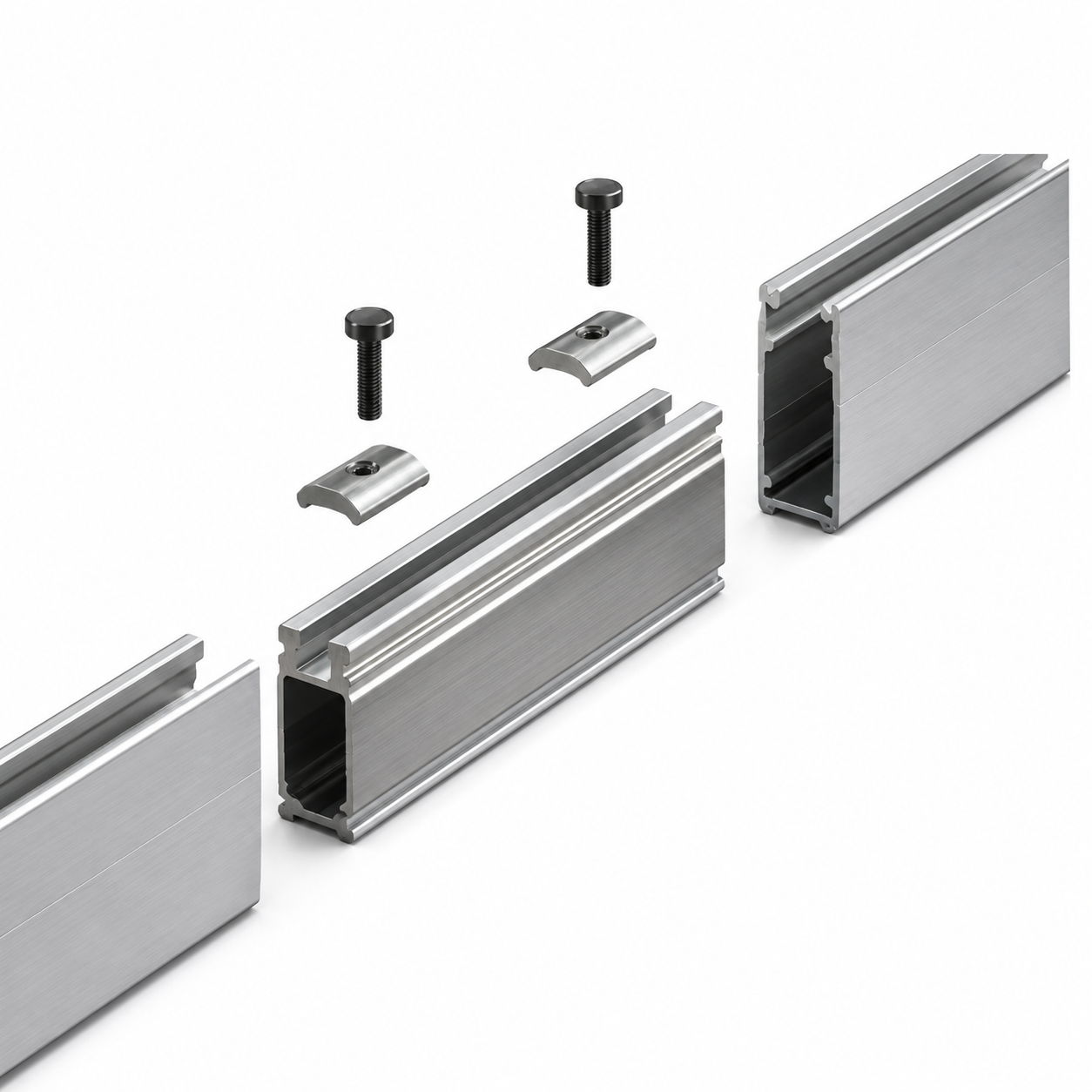

Metal profile sections with screws and connectors arranged in sequence.

2x Tamarack | 3.1 in Structural Rail Splice

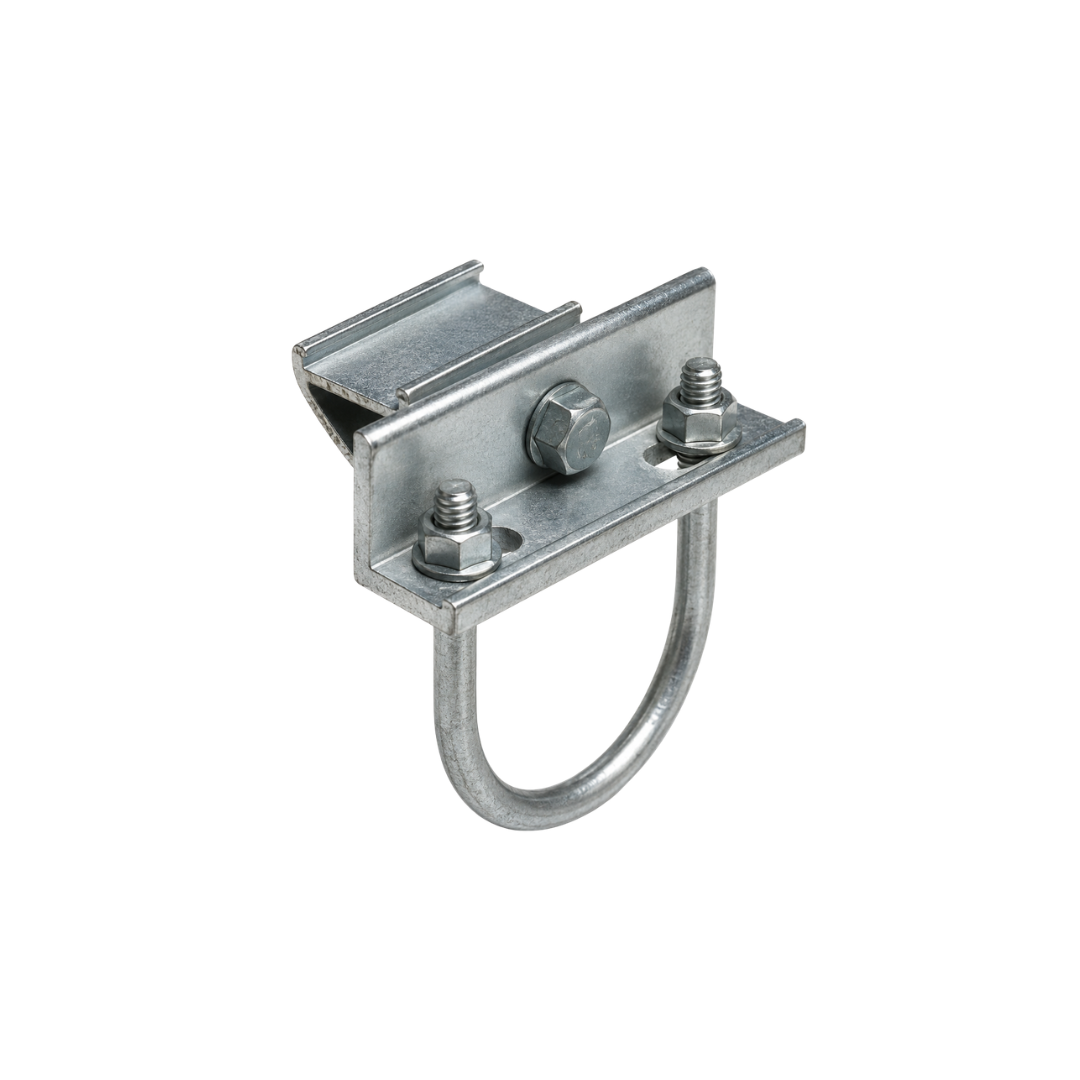

Metal bracket with a loop and mounting hardware for installation.

4x Tamarack | Pipe Mount w/ U-Bolts

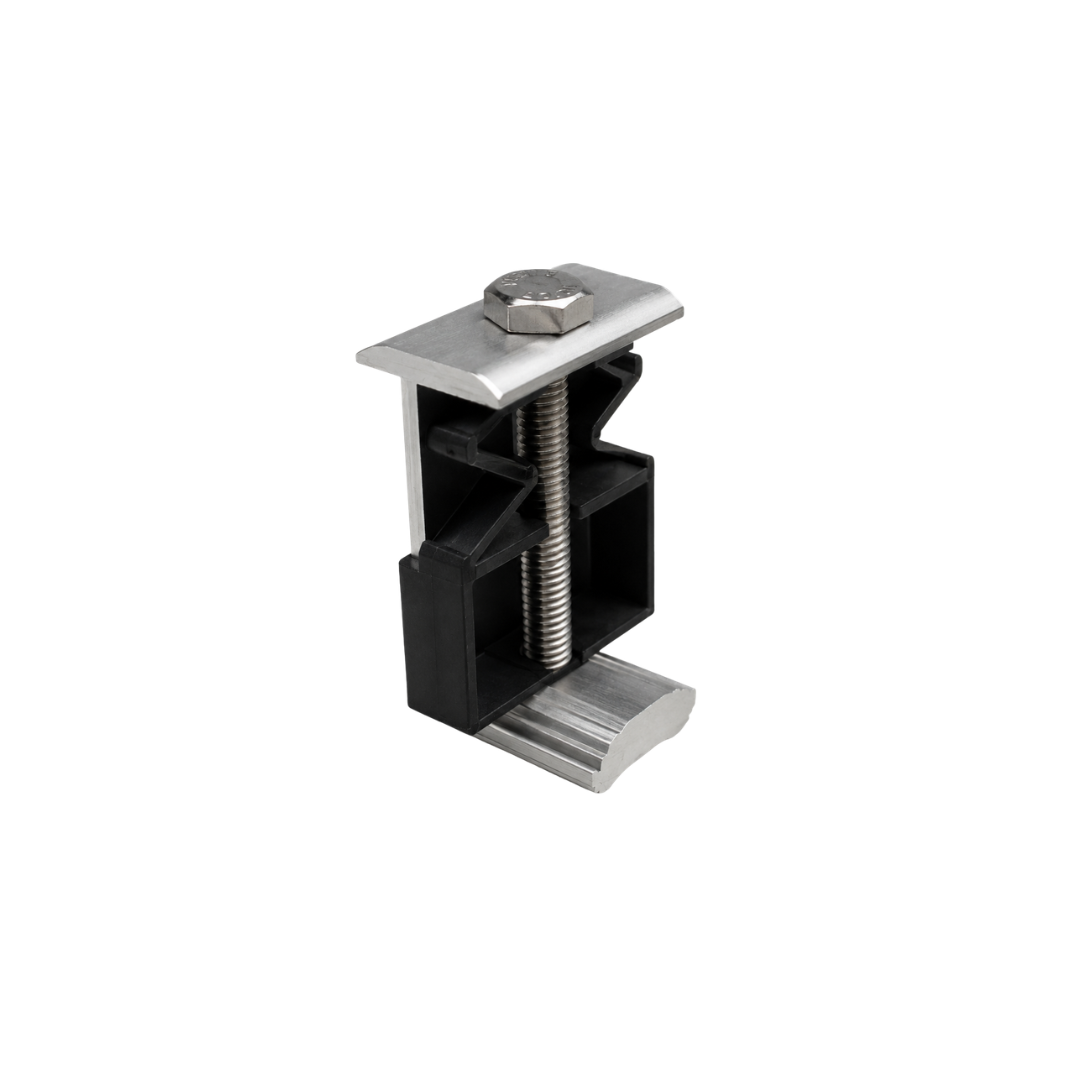

Black and silver clamp with a threaded bolt and mounting base.

10x Tamarack | 50/50 Clamp

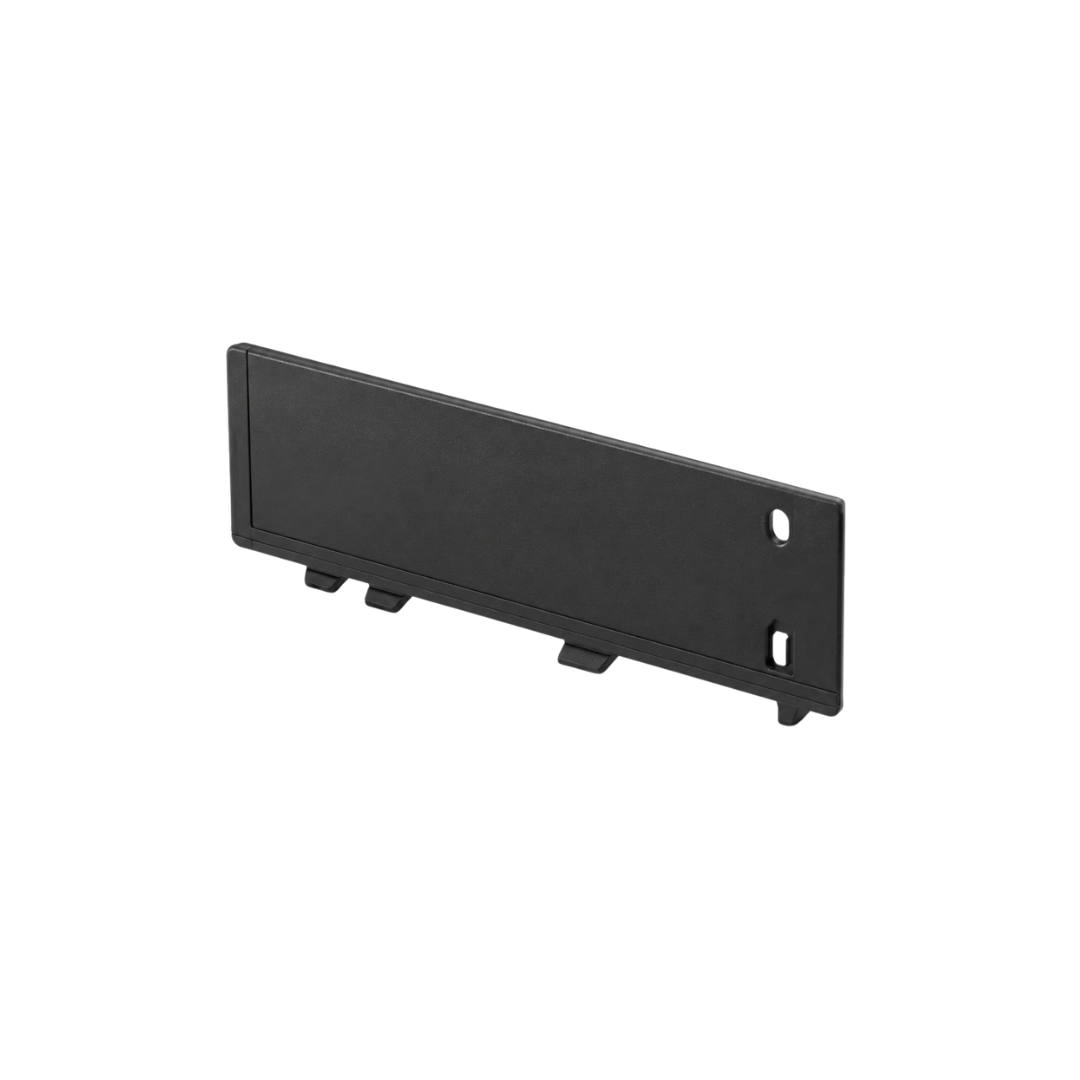

Black plastic panel with two mounting tabs and one hole.

4x Tamarack | End Cap

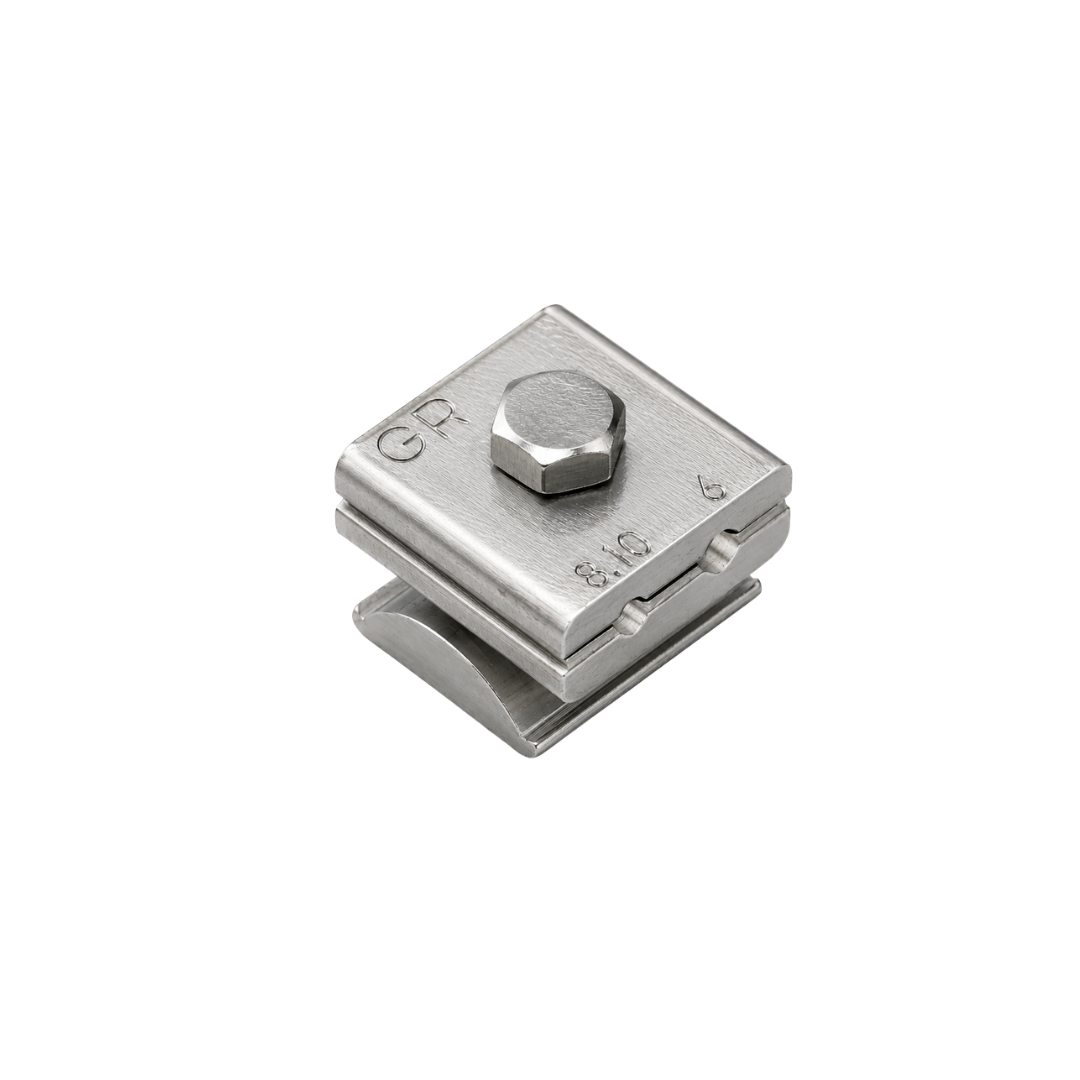

Metal square fastener with a hexagonal nut on top.

1x Tamarack | Ground Lug

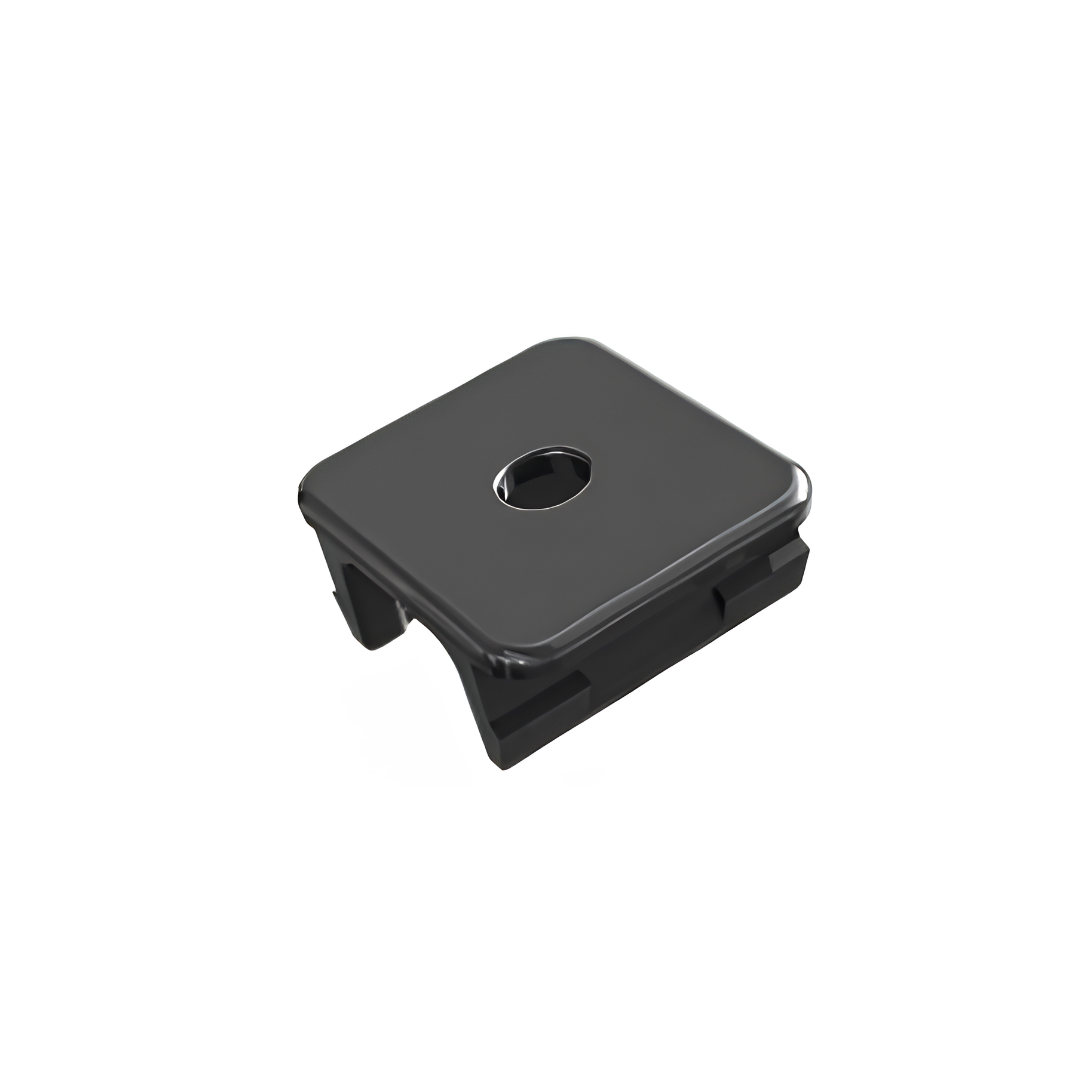

Black square clip with a central hole, designed for mounting purposes.

8x Tamarack | Wire Clip
