Lg Battery / Growatt Inverter Bunlde with components

LG 16H Prime 16kWh High Voltage Battery Bundle with Growatt 7.6kW or 11.4kW Grid-Tie Inverter {BNDL-L0001}

$19,988.00
$7,999.00
SKU:
BNDL-L0001-G2-2

Reliable Power with LG 16H Prime Battery & Growatt Inverter

This residential backup kit pairs the high-voltage LG 16H Prime Battery with your choice of a 7.6kW or 11.4kW Growatt Inverter. Designed for performance and efficiency, the high-voltage setup offers faster charging, reliable power for high-demand loads, and is ideal for homes with EV chargers. Need more storage? A two-battery option is also available for extended backup during longer outages.

Need help with installation and commissioning? Download our step-by-step commissioning guide here.

LG battery banner show specifications
Two LG high voltage prime batteries with power specifications.
LG battery banner showing key features
Banner showing specific use cases and benefits of LG battery

The LG RESU16H Prime is a high-capacity, high-voltage lithium-ion battery designed to provide efficient and scalable energy storage for residential applications. With a 16kWh capacity, it delivers reliable backup power, energy savings, and greater energy independence.

Features:

  • Reliable Backup Power – Provides 16kWh of stored energy, enough to keep your home or business running during outages.
  • High-Voltage Efficiency – Operates at 400V, allowing for faster charging and better energy conversion compared to lower-voltage batteries.
  • Expandable Storage – Need more power? Parallel two batteries to increase your total capacity to 32kWh, providing extended backup and energy storage.
  • Long-Lasting Performance – Uses advanced lithium-ion technology for a longer lifespan and higher efficiency than traditional batteries.
  • Built for Safety and Durability – The Battery Management System (BMS) protects against overheating, overcharging, and short circuits.
  • Indoor and Outdoor Ready – Designed to withstand various conditions for flexible installation options.
  • Smart Energy Use – Store solar energy for nighttime use or when electricity rates are highest, helping to lower your energy costs.

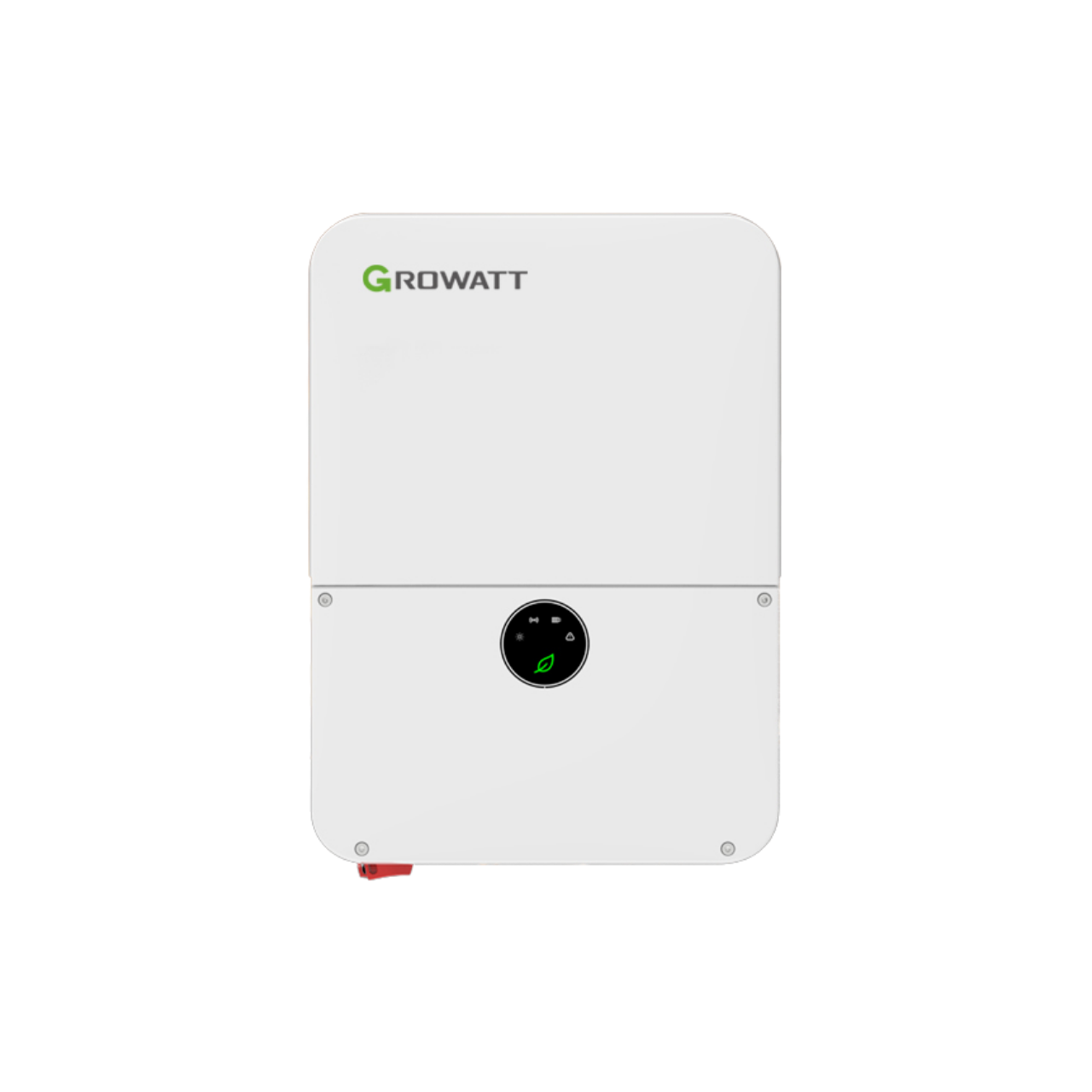

The Growatt 7.6kW Grid-Tie Inverter (MIN 7600TL-XH-US) is a high-efficiency residential inverter designed for flexible PV system configurations. With smart connectivity and robust protection features, it delivers reliable, safe performance for modern solar setups.

Features:

  • High Power Output – Delivers 7600W of nominal output with up to 98.5% efficiency.
  • Flexible System Design – Supports 500 VDC input with 3 MPP trackers and 2 strings per tracker.
  • Wide Operating Range – Performs in temperatures from –13°F to +140°F with natural convection cooling.
  • Outdoor-Ready – NEMA 4X (IP65) rated for durable and weather-resistant installation.
  • Lightweight & Durable – Built with aerospace-grade, flame-retardant materials.
  • Smart Connectivity – Features 4G/Wi-Fi communication with app-based monitoring.
  • Advanced Safety – Includes AFCI, RFCI, rapid shutdown, and UL 1741 certification.

The Growatt 11.4kW Grid-Tie Inverter (MIN11400TL-XH-US) is a high-efficiency inverter designed for flexible residential and commercial solar systems. With advanced protection features and battery readiness, it ensures reliable, safe performance.

Features:

  • Nominal Output - 11,400W with high efficiency up to 98.5%.
  • Battery Ready - Supports DC and AC coupled systems.
  • Backup Power - Includes Backup Power and Dark Start functionality.
  • MPP Trackers - 4 MPP Trackers for optimized energy harvesting.
  • Operating Temperature - Range from –13°F to +140°F for reliable performance.
  • Durability - NEMA4X (IP65) Rated for outdoor environments.
  • Energy Management - Supports Self-consumption, Zero Export, TOU, and Off-grid modes.
  • Compliance - UL1741SA/SB, CA Rule 21, and HECO Compliant for safety.
  • Remote Monitoring - Built-in 4G/Wi-Fi Communication for App (iOS, Android, Windows).
  • Safety - AFCI Protection for added safety.

Please Note: Lifetime Customer Support is based in Texas and available via phone and email. We strongly recommend using a certified solar installer and/or master electrician for professional installation. Please note that additional components may be required for your installation. Need help with installation and commissioning? Download our step-by-step commissioning guide here.

Have questions or need assistance? Our support team is here to help! Give us a call at 903-441-2090.

Product Image Product Information
EG4 18KPV Hybrid Inverter | All-In-One Solar Inverter | 18000W PV Input | 12000W Output | 48V 120/240V Split Phase | EG4-18KPV-12LV

LG 16H Prime Battery | 16kWh | 400V | High Voltage
End Clamp for Mini Rail 30mm close up view

Choice of:

1 x Growatt 7.6kW Grid-Tie Inverter | MIN 7600TL XH-US
Front and rear view of BlueSun 460W Bifacial Solar Panel pallet quantity

Or:

1 x Growatt 11.4kW Grid-Tie Inverter | MIN11400TL-XH-US | V3

With Growatt 7.6kW Inverter:

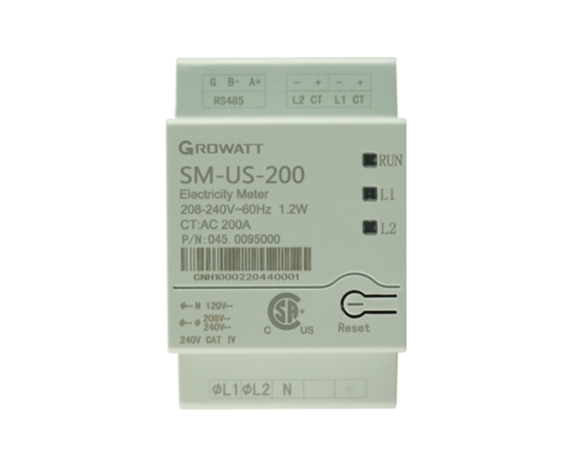

1 x Growatt SM-US-200 Smart Meter

The Growatt Smart Meter helps manage how much solar power you send to the grid and lets you monitor your energy use, with simple setup and direct connection to Growatt inverters.

*When used with the Growatt 7.6kW Inverter, the Smart Meter enables Time-of-Use and grid conditioning capabilities. Please note: this option does not provide backup power.

With Growatt 11.4kW Inverter:

1 x Growatt SYN 200-XH-US | 13A

The Growatt SYN 200-XH-US is an automatic transfer switch that provides whole-home backup, quickly switches between grid and battery power, and works with generators for added flexibility.



LG 16H PRIME High Voltage Battery: Key Features and Overview

Get a clear overview of the LG 16H Prime High Voltage Battery—its standout 16kWh capacity, fast charging capabilities, and powerful performance for whole-home backup. Learn how its high-voltage design supports high-demand appliances, offers over 90% round-trip efficiency, and can be expanded to 32kWh for even greater energy independence. Ideal for homes with EV charging and critical backup needs.

LG High Voltage Batteries + Growatt Inverter: Complete Installation & Commissioning Guide

Learn how to install and commission the new LG High-Voltage Batteries with a Growatt Inverter in this detailed, step-by-step video. Alex and Kelly from Signature Solar walk you through the entire process from wiring and battery configuration to final commissioning and testing.

This tutorial is designed for both DIY solar enthusiasts and professional solar installers who want a clear and reliable guide to integrating LG HV batteries with Growatt hybrid inverters.

LG Battery: 10-Year Warranty Growatt Inverters and SYN: 10-Year Warranty Growatt Smart Meter: 5-Year Warranty
